SDM2000U個人劑量儀以半導體探測器作為X、γ探測器件，能夠測量有X、γ輻射引起的個人累積劑量當量和劑量當量率。劑量和劑量率數據均可由LCD直接顯示讀出。劑量儀可預置劑量和劑量率報警閾值，超閾時發出聲、光報警�？杀４婀ぷ鹘Y(jié)束時的測量數據，斷電情況下數據不丟失。劑量儀自動檢測電池電壓，欠壓時可顯示欠壓符號。 儀器主要技術指標符合國家標準和國際標準，它廣泛適用于工業無損探傷、核電站、同位素應用和醫院鈷治療等領域

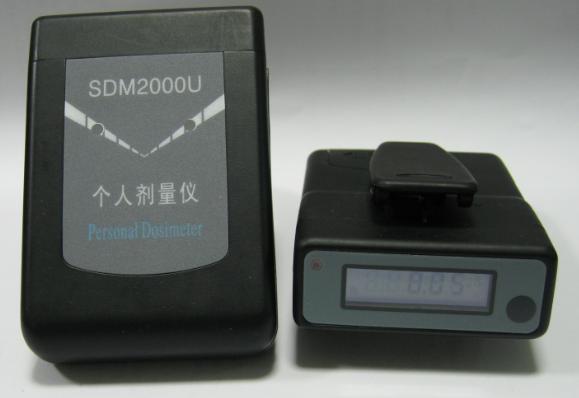

                               SDM2000U型個人劑量儀

特 點:

    a、儀器靈敏度高，對環境本底亦有響應
    b、采用單片機技術，功能多，體積小
    c、儀器操作簡單，使用方便
    d、累積劑量、劑量率切換顯示
    e、抗電磁干擾能力強

技術指標：
  1、探測器：硅半導體探測器
  2、測量顯示范圍:
        劑量率: 0.1 μSv/h~999.9 mSv/h
        累計劑量: 0.0 μSv~9999 mSv
  3、報警閾:
        劑量率: 1 μSv/h~1 Sv/h之間連續可調
        累計劑量: 1 μSv~10 Sv之間連續可調
  4、報警功能:
       以聲(蜂鳴器)、光(LED)及LCD指示進行累積劑量及劑量率超閾、電池欠壓、工作超時和探測器失效報警。可設置不同累積劑量增量提示聲音(聲響強度 > 80dB, 距劑量儀30cm處)。
  5、能量響應:<±20%（48 keV ~ 1.5 MeV）
  6、線性誤差：1 μSv/h ~ 1 Sv/h，≤15%。
  7、抵沖擊和振動：符合IEC1283標準要求
  8、過載特性：大于20 Sv/h
  9、電 源:AA型3.6V電池一節，電池壽命 >1000小時 (50 mSv/年,1.8 Ah)。
  10、欠壓指示：當電池電壓≤3.1±0.1V時，顯示欠壓符號
  11、溫度特性：
          0 ~ +40℃測量值變化<±10%
         -10 ~ +50℃測量值變化<±15%
  12、相對濕度: 40% ≤RH≤95% (35℃)時測量值變化<±10%
  13、重量：100g
  14、尺寸：90×62×25 mm

SDM2000U Personal Dosimeter
Function
    The dosimeter is used to monitor the personal dose equivalent and dose equivalent rate of X, γ radiation. DE, DER and total working time can be read out switched by pressing function button. It incorporates audile, visual and LCD indicator alarms to warn user when preset dose/dose rate threshold levels are exceeded. The threshold can be set random in measurement range. Real-time measurement data can be storage in non-volatile memory that will not lose after power off. Record data can be transmitted through infrared communication to the Record Reader, and the reader can communicates with computer via RS485 mode interface transport. Dosimeter can be used alone or with the reader and computer network data management system.

Features
1、Wide-range, low power consumption, resistance to overload
2、Real-time an Non-volatile data record
3、Displaying cumulative dose, dose rate and working hours
4、Audio, visual and LCD indicating over-threshold alarm
5、Threshold can be set in measurement range
6、Standardized measurement data can be managed by professional software via IR communicator
7、Advanced design to ensure the safety and reliability of measurement

Specifications

 1、measurement range：Hp(10): 0.01Sv10Sv
                       Hp(10): 0.1Sv/h1Sv/h
 2、Alarm threshold
        Continuously set .during  measurement range for dose and dose rate.
        Dose increment alarm: can be set during 1Sv999Sv
        Over time: 16000min
3、Alarm
  Gives audile, visual and LCD indicating alarm for  over-threshold, under-voltage, over time, detector failure and DE increment tips.
Sound intensity > 80dB   (@30cm)
4、LCD Display
     Hp(10): 0.00Sv9999mSv
     Dose rate Hp(10): 0.01Sv/h1999mSv/h
5、energy response
       <±30%（50keV1.5MeV）
6、DR response
       <±20%  (1Sv/h10Sv/h)
       <±15%  (10Sv/h1Sv/h)
7、Overload：>20Sv/h
8、Power：One AA size Lithium Battery 3.6V
9、Battery Life >2000h.
10、8 hours last when under-voltage alarms
11、Temperature <±10%,  -10℃+40℃
12、Humidity <±10%,  40%90%RH(35℃)
13、Weight 95g
14、Dimensions 90×62×25(excluding clip)
